Hightower

Avant (MM) 160

Arrière (MM) 150

Taille de roues 29

THE DEFINITIVE MOUNTAIN BIKE

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.

See The Bikes

ARE WE THERE YET? Nina Hoffmann and Steve Peat get higher

UP, DOWN, AND ALL AROUND

AN ALL-TERRAIN THRILLER

For trail rides that could mean local laps or alpine loops you need a bike with balanced travel and geometry that can handle a wide range of trail conditions. If you’re not looking for extremes, just something extremely good, the Hightower is your elevator.

MILLIMETERS MATTER

A TRUE MTB FOR MODERN MOUNTAIN BIKING

The Hightower has the brawn to back up the brains. 150mm-travel VPP™ provides a plush, open feel with a lot of traction. This suspension travel sweetspot provides a broad riding envelope, meaning you’ll be pushing yourself and not the bike.

Filtres :

MY25 Hightower CC XX AXS RSV GlossDayGreen C685e23f 6a15 4eb0 B13d 6ee4d61059b1

Hightower XX AXS RSV

Carbone CC

Montage remarquable. Cadre carbone CC, suspensions haut de gamme et groupe électronique complet SRAM XX T-Type.

£9,999

Comparer

MY25 Hightower CC X0 AXS RSV GlossDayGreen 3ca2f549 E0ea 4c74 7b573166f9a1

Hightower X0 AXS RSV

Carbone CC

Les meilleurs composants, avec en plus les roues en carbone Reserve devenues référence.

£8,799

Comparer

MY25 Hightower CC X0 AXS GlossDayGreen 0ec03c20 E5d9 43a2 Bbd9 9f3ae0ff4482

Hightower X0 AXS

Carbone CC

Pour ne rien laisser au hasard... Cadre carbone CC léger et robuste, transmission électronique SRAM X0 T-Type, suspensions Fox Factory et les puissants freins SRAM Maven

£7,799

Comparer

MY25 Hightower C GX AXS GlossDayGreen 65cf25db 3eb2 Bc88 3288a56f2638

Hightower GX AXS

Carbone C

Des performances optimisées... Évolution vers une transmission électronique SRAM GX Eagle, des suspensions Fox Elite et les puissants freins SRAM Maven

£6,599

Comparer

MY26 Hightower C MatteBlack Dad37bd8 62c8 44aa 98d3 2e372d12d3d7

Hightower 90

Carbone C

Une valeur sûre... Moyeux, jeu de direction et tige de selle optimisés. Plus d'ajustements sur les suspensions, une transmission mécanique T-Type SRAM 90 et des freins SRAM Maven.

£5,699

new

Comparer

MY26 Hightower C MatteBlack B9567b8c 38ab 489b A6a1 C7dc5c982f85

Hightower 70

Carbone C

Modèle de base équipé d'une transmission mécanique T-Type SRAM 70 et du même type de composants de qualité que le reste de la gamme Hightower.

£4,899

new

Comparer

MY25 Hightower C S GlossDayGreen 82a74e05 4be3 A166 3a80b49091dc

Hightower S

Carbone CC

Une valeur sûre... Roues, jeu de direction et tige de selle optimisées. Plus d'ajustements sur les suspensions, une transmission à câble SRAM Eagle et des freins SRAM 4 pistons.

£5,699

Comparer

MY25 Hightower C R GlossDayGreen 8451914d 064d 405a A73d 89470b6118d0

Hightower R

Carbone C

Modèle de base équipé du même type de composants de qualité que le reste de la gamme Hightower. Fourche RockShox Lyric, associé à l'amortisseur Fox Float Rhythm pour des performances optimales, sans les nombreux réglages externes.

£4,899

Comparer

MY25 Hightower CC FactoryFLoatX Frame GlossDayGreen

Cadre Hightower

Carbone CC

£3,599

Deals On Hightowers

Current Offers

Désolé, il n'y a pas de résultat qui corresponde à votre recherche.

Design Details

SUSPENSION VPP™

Les deux courtes biellettes du système VPP™ offrent l'équilibre parfait entre efficacité au pédalage et absorption optimale des chocs.

Design details of Design Details CarbonMastery HT BR NO MT TB HKSL HK BL HB

EXPERTISE CARBONE

Choisissez entre le carbone CC plus haut de gamme ou le carbone C plus économique. Tous deux couverts par notre garantie à vie.

Design details of Design Details Built2Last HT BR NO MT TB HKSL HK BL HB

PENSÉ POUR DURER

Un vélo n'est pas fait pour être jeté. Grâce à un cadre robuste et des roulements gratuits à vie, nos vélos sont pensés pour durer.

GLOVEBOX

Gardez l'essentiel à portée de main grâce à la Glovebox. Fournie avec une trousse à outil et un étui pour chambre à air

Sweat the details

	s	m	l	xl	xxl
Reach (Hi/Lo)	435/432	460/457	480/477	500/497	525/522
Stack (Hi/Lo)	623/625	632/634	641/643	659/661	668/670
C. Angle de direction (Hi/Lo)	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°	64.2°/63.9°
K. Longueur du tube de direction (Hi/Lo)	110	120	130	150	160
G. Longueur des bases (Hi/Lo)	434	436	439	442	445
Front Center (Hi/Lo)	771	800	825	853	883
H. Hauteur du boitier (Hi/Lo)	344/341	344/341	344/341	344/341	344/341
BB Drop Front (Hi/Lo)	29/32	29/32	29/32	29/32	29/32
BB Drop Rear (Hi/Lo)	29/32	29/32	29/32	29/32	29/32
E. Empattement (Hi/Lo)	1206	1237	1264	1296	1328
M. Longueur de tube supérieur (Hi/Lo)	572	595	614	636	662
L. Longueur du tube de selle (Hi/Lo)	380	405	430	460	500
D. Angle du tube de selle (Hi/Lo)	77.6°/77.3°	77.9°/77.6°	78.2°/77.9°	78.3°/78°	78.4/°78.1°
Standover Height (Hi/Lo)	721	723	725	727	731

label	part_number	quantity	name	blurb
A	29-27474	1	Upper Link
B	11-12681	2	6900-2RS Bearing
C	26-15533	2	M10x3 Washer	Apply grease to inner surface
D	26-11612	2	Bearing Dust Shield	Apply grease to inner surface
E	11-12218	2	6902-2RS Max Bearing

label	part_number	quantity	name	blurb	torque
A	29-27473	1	Lower Link
B	11-17708	4	6902-1ZR Bearing
C	26-11612	4	Bearing Dust Shield	Apply grease to inner surface
D	26-19126	1	15x28 Bearing spacer
E	26-17013	1	15x40.25 Bearing Spacer
F	26-12678	1	M6 Grease Fitting		9 Nm
G	26-15532	1	M5x5 Set Screw	Apply Loctite 242 to threads, titghten until flush	0.5 Nm

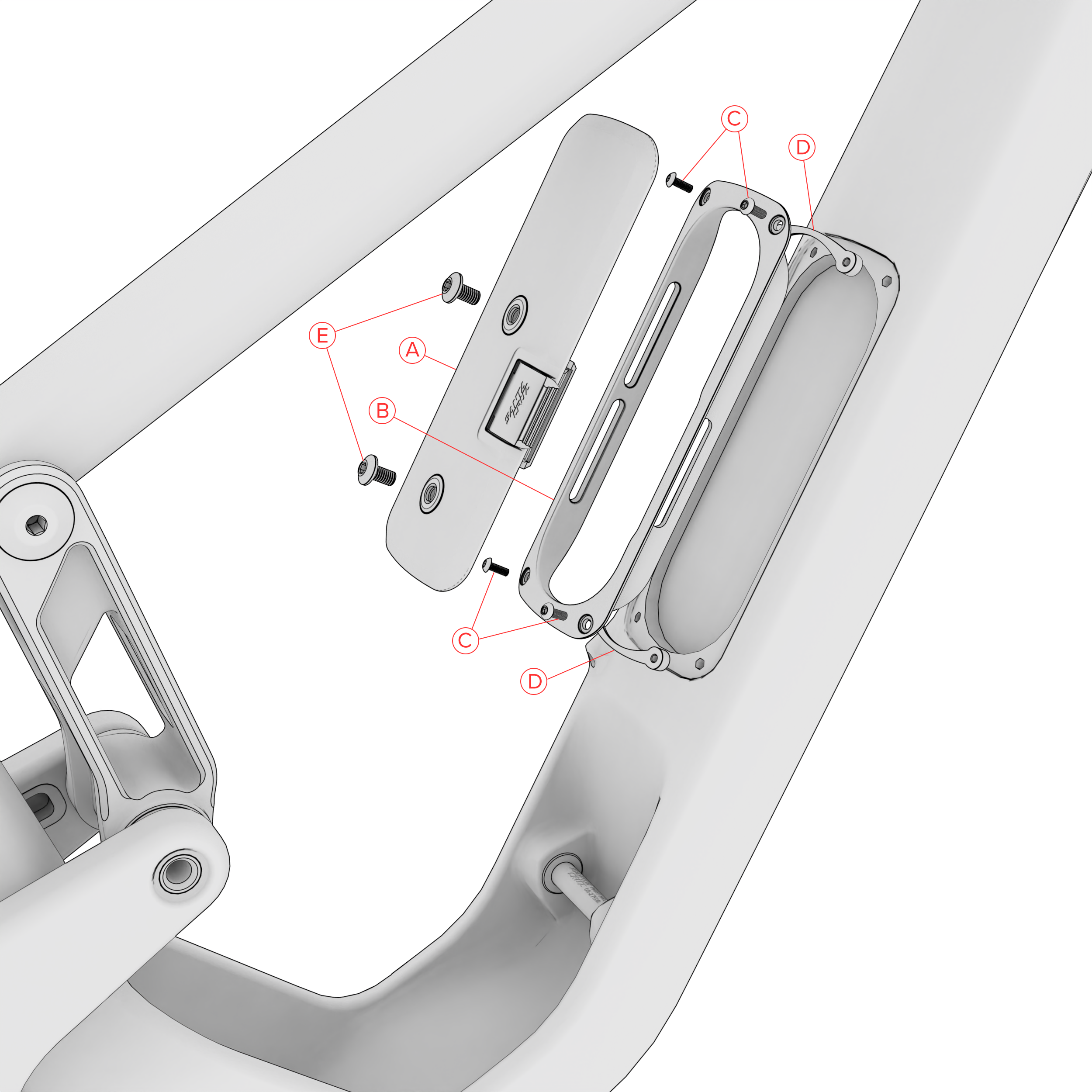

label	part_number	quantity	name	torque	blurb
A	26-22843	1	Glovebox lid
B	26-25333	1	Glovebox bezel
C	26-23284	4	M3x8 BHCS	0.5 Nm	Apply Loctite 242 to threads
D	30-23225	2	Glovebox nut

label	part_number	quantity	name	blurb	torque
A	08-22209	1	Rear axle 12x173.7	Apply grease to shaft and threads
B	23-23491	1	SCB UDH	Interchangeable with Sram UDH
C	26-23492	1	SCB UDH screw	Reverse thread	20 Nm
D	30-27472	1	Chainstay Protector
E	26-15939	1	M3x12 BHCS	Apply Loctite 242 to threads	0.1 Nm
F	30-21453	1	Seatstay Protector
G	30-23094	1	Lower Link Fender
H	26-18382	2	M4x12 BHCS	Apply grease to treads	0.65 Nm

label	part_number	quantity	torque	name	blurb
A	26-20122	2	16 Nm	M10x23 Screw	Apply Loctite 242 to threads only, apply grease to shaft only
B	08-22343	1	20 Nm	Pivot Axle M15x91	Apply Loctite 242 to threads only, apply grease to shaft only
C	26-15633	3		M6 Tapered Washer	Apply grease to surface
D	26-11817	3		M6 Washer
E	26-15947	3	9 Nm	M6x20 SHCS	Apply Loctite 242 to threads
F	08-16291	1	20 Nm	Pivot axle M15x68.5	Apply Loctite 242 to threads only, apply grease to shaft only
G	08-16292	1	20 Nm	Pivot axle M15x80.5	Apply Loctite 242 to threads only, apply grease to shaft only
H	26-15946	1	5.6 Nm	M5x20 SHCS	Apply Loctite 242 to threads
I	26-12652	1		M5 Washer
J	26-27530	1		M5 Tapered Washer	Apply grease to surface
K	08-27508	1	13.6Nm	Shock Mount Axle M10x63	Apply Loctite 242 to threads only, apply grease to shaft only
L	26-22461	1	20 Nm	M8x45 Shock Bolt	Apply Loctite 242 to threads
M	26-21452	1		M8x2 Flip Chip NDS	Apply grease to surface
N	26-21451	1		M8x2 Flip Chip DS	Apply grease to surface

label	part_number	quantity	name	blurb	torque
A	20-27756	1	Head Tube Badge	Clean frame surface, center on headtube
B	30-23750	1	Shuttle Guard Mount
C	30-22560	1	Shuttle Guard
D	26-21249	2	M4x8 BHCS	Apply grease to threads	0.65 Nm
E	30-27471	1	Downtube Protector
F	26-18382	2	M4x12 BHCS	Apply grease to treads	0.65 Nm
G	34-20201	1	36.4 Seat Collar

Frame Size	Flip Chip	Setup Key	Setup Cog	30T	32T	34T	36T
S	High	B	7	116	116	118	118
M	High	B	7	116	116	118	118
L	High	B	7	116	116	118	118
XL	High	B	7	116	118	118	120
XXL	High	B	7	116	118	118	120
S	Low	B	7	116	116	118	118
M	Low	B	7	116	116	118	118
L	Low	B	7	116	118	118	120
XL	Low	B	7	116	118	118	120
XXL	Low	B	7	118	118	120	120

Allez plus loin

Sizing and support for the Hightower

Design details of MY26 Hightower Details

Géométries
et tailles

Hightower VPP 4b28128c 4fc3 A7ba 9bde7c602f0f

Configuration
et support technique

“The Hightower has grown up, it’s now a bike for big terrain and long days out in proper mountains, and as such it’ll be more useful for more riders, I suspect.”

“The pedaling is absolutely excellent for such a potent 150mm bike, which, combined with useful features such as the glovebox, makes the Hightower an excellent choice for long rides. ”

“I just feel like I’m riding better up here than I have in ages. And that’s all down to this bike. Happy days on the new Hightower. It’s a mojo finder. ”

THE RUNDOWN

SO WHAT'S THE HIGHTOWER ALL ABOUT?

CAN'T BE BOTHERED TO READ OR STILL LOOKING FOR ANSWERS ON THE HIGHTOWER? WATCH AND LEARN.
