Butcher 1
| Model Version | 1 |
|---|---|
| Production Start | 2010 |
| Production End | 2012 |
| Suspension/Pivot System | APP - Actual Pivot Point |
| Material | Aluminum - 6000 series |
| Rear Wheel Travel | 150mm |
| Size Range | S,M,L,XL |
Spécificités du modèle
| Compatible Forks | 150mm to 160mm total travel - 160mm travel max |
|---|---|
| Headtube/Headset | Tapered - 44mm zero stack/internal upper cup, with an external 49mm lower cup. The SHIS name is ZS44/28.6 EC49/40. |
| Seat Post | 30.9mm - Minimum insertion 100mm |
| Front Derailleur | 34.9mm Top Pull/Top Swing (Low Clamp) |
| BB Shell Width | 73mm - Threaded - ISO |
| Chainline Spec | 50mm |
| Recommended Max Tire Size | 2.5 - may vary by tire and rim model |
| Brakes | Disc Brake - ISO |
| Max Brake Rotor Size | 203mm |
| Rear Hub | 135mm x 10mm (QR style) |
| Seatpost Clamp | 34.9mm |
Spécificités de l'amortisseur
| Rear Shock Eye-to-Eye | 8.5” |
|---|---|
| Stroke | 2.5" |
| Mounting Bushing Width Front | 22mm |
| Mounting Bushing Width Rear | 22mm |
| Mounting Bolt Diameter Front | 8mm |
| Mounting Bolt Diameter Rear | 8mm |
| Leverage Ratio | 2.4 : 1 |
| Rear Shock Setup | butcher_setup.png |
Géométries
Réglage des suspensions
Couple de serrage
| Fastener | Download |
|---|---|
| In Exploded Diagrams Below | - |

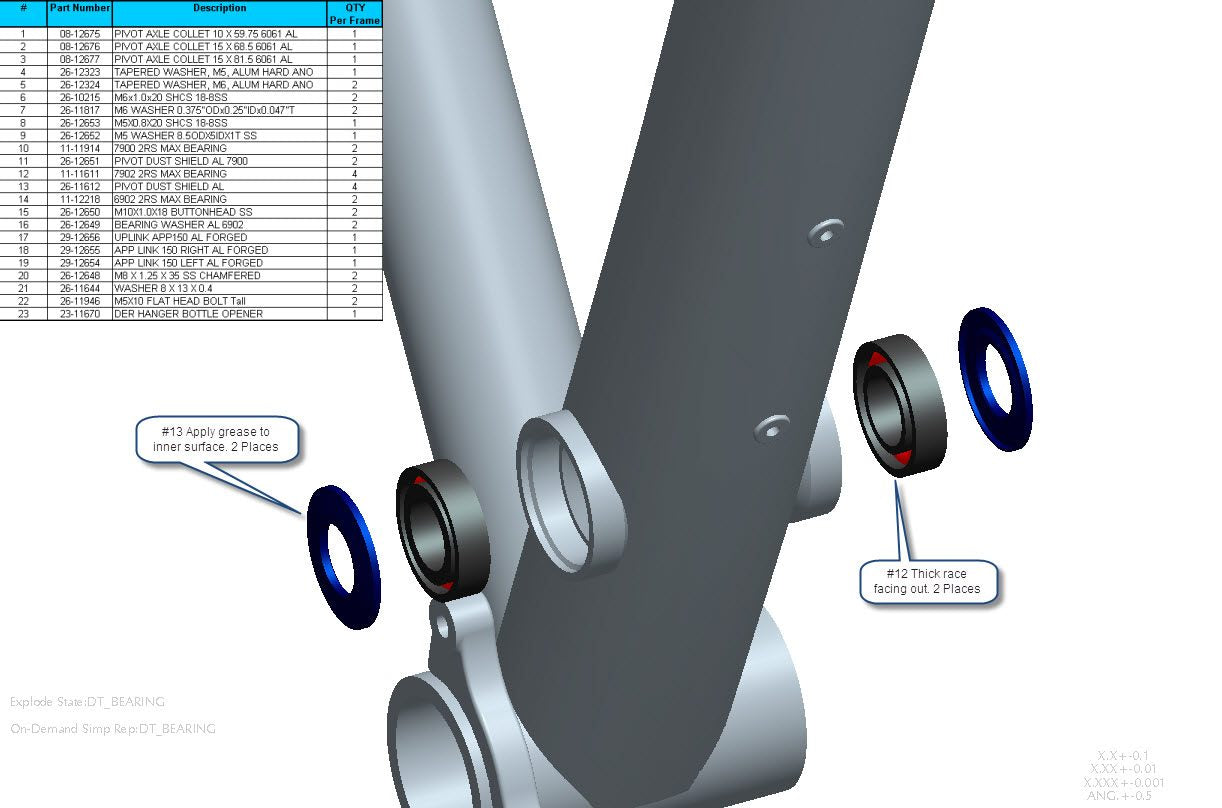

Vues éclatées
Chargement
Chargement
Chargement
Chargement
Chargement
Chargement
Chargement
Documents
Si vous cherchez davantage d'informations sur votre vélo, consultez le manuel d'utilisation.
