Bullit

Arrière (MM) 170

Taille de roues MX

Unité motrice Bosch

Batterie (Wh) 600

A DOWNHILL BIKE WITH A BUILT-IN CHAIRLIFT

If you feel the pull of gravity riding but want an extra push to get to the top, the Bullit is for you. Specifically designed to excel on the toughest terrain, it features an electric motor to get you to the drop-in of the wildest trails. The Bullit is the closest you can get to owning both a downhill bike and a chairlift.

See The Bikes

PURE THRILLS

WHEN GRAVITY CALLS

The Bullit is a no-limits ebike. With DH-derived geometry, huge travel, and rugged components, it's made for the wildest trails that would typically require a downhill bike.

PEDAL-ASSIST

WHAT GOES UP, LOVES COMING DOWN

When you seek out the roughest and most challenging trails, the Bullit will be your trusty sidekick. And when the route there takes you into rarefied air, having the power of a motor means you can save your best for the ride down.

Filtres :

MY26 Bullit CC X0 AXS RSV GlossBlack 28fdc040 4b54 83ea Bb36248bc676

Bullit X0 AXS RSV

Carbone CC

Technologie de pointe, équipement très haut de gamme et performances exceptionnelles. Cadre en carbone CC, transmission SRAM T-Type X0 AXS, suspension FOX Float Factory, et roues Reserve HD/DH en carbone montées sur moyeux DT Swiss.

See dealer for pricing

new

Comparer

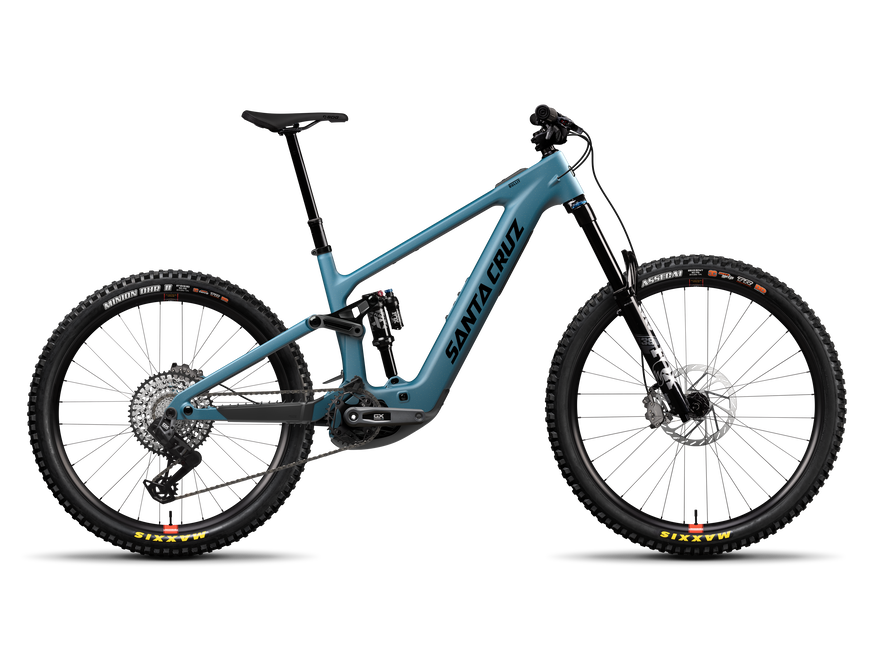

MY26 Bullit C GX AXS MatteTealSparkle Ce824fcd Ace7 408c 80f0 D02a126a1fd0

Bullit GX AXS

Carbone C

Des performances d’élite, sans fioritures. Suspension FOX Float Performance Elite avant et arrière, transmission électronique T-Type SRAM GX Eagle AXS, et freins SRAM Maven puissants.

See dealer for pricing

new

Comparer

MY26 Bullit C GlossBlack 2f5bd759 0b3c 415d Aa20 6180561a4577

Bullit 90

Carbone C

Composants fiables et performants offrant un excellent rapport qualité-prix : roues Reserve AL, freins SRAM Maven, tige de selle télescopique OneUp, suspension FOX Float Performance et nouvelle transmission à câble SRAM T-Type 90.

See dealer for pricing

new

Comparer

MY26 Bullit C MatteTealSparkle 3029e2f0 59ed 4dae 81ec Ce45b5cb1211

Bullit 70

Carbone C

Modèle de base, avec le même moteur Bosch et les mêmes composants de qualité que le reste de la gamme Bullit. Nouvelle transmission à câble SRAM T-Type 70 et suspensions performantes, sans les nombreux réglages externes.

See dealer for pricing

new

Comparer

Désolé, il n'y a pas de résultat qui corresponde à votre recherche.

Design Details

EXPERTISE CARBONE

Choisissez entre le carbone CC plus haut de gamme ou le carbone C plus économique. Tous deux couverts par notre garantie à vie.

Design details of Design Details BoschApp VA BU

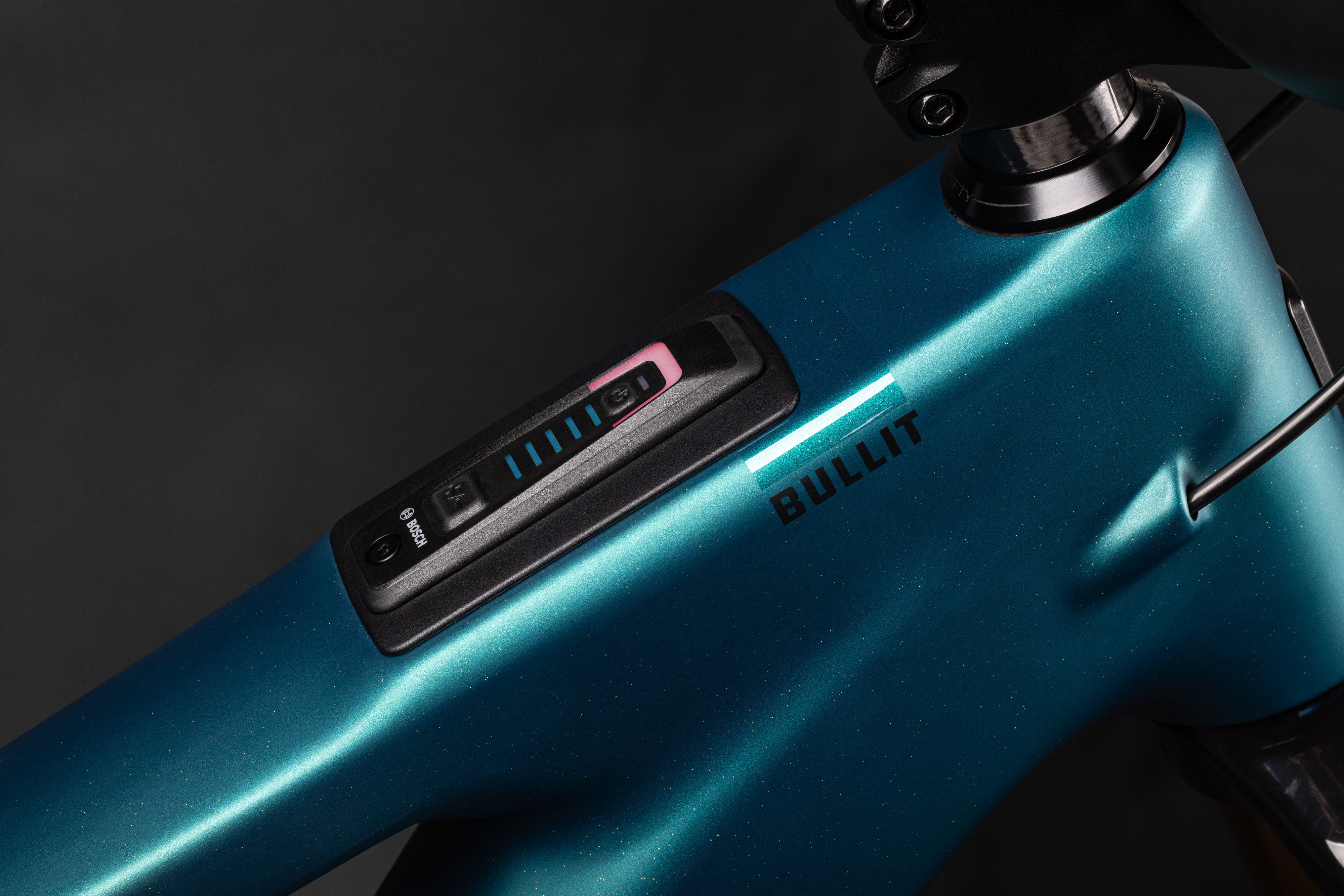

APP BOSCH FLOW

Customisez les modes d'assistance, téléchargez des itinéraires, analysez vos sorties et laissez le Range Control choisir le mode pour vous.

PENSÉ POUR DURER

Un vélo n'est pas conçu pour être jeté. Avec un cadre robuste et des roulements garantis à vie, nos vélos sont pensés pour durer.

Design details of Design Details Hardware VA BU

UN ENSEMBLE RÉSISTANT

Sur tous les Santa Cruz, les axes et biellettes sont robustes et faciles d'entretien. De plus, les roulements sont gratuits à vie pour le premier propriétaire.

Design details of Design Details Adjust VA

AJUSTEMENTS INDÉPENDANTS

le Flip Chip de géométrie modifie la hauteur du pédalier de 4mm et l'angle de direction de 0.3°. Celui de la suspension modifie la progressivité de 26% à 29%.

Design details of MY26 Bullit Details Ba8a6acf 363f A970 B5b2094dfd19

Sweat the details

	s	m	l	xl	xxl
Reach (Hi/Lo)	435/432	460/457	480/477	500/497	525/522
Stack (Hi/Lo)	622/625	631/635	640/643	654/656	670/674
C. Angle de direction (Hi/Lo)	63.6/63.3	63.6/63.3	63.6/63.3	63.6/63.3	63.6/63.3
K. Longueur du tube de direction	100	110	120	135	155
G. Longueur des bases	440	443	446	449	452
Front Center	780	809	834	860	894
H. Hauteur du boitier (Hi/Lo)	346/342	346/342	346/342	346/342	346/342
BB Drop Front (Hi/Lo)	27/31	27/31	27/31	27/31	27/31
BB Drop Rear (Hi/Lo)	9/13	9/13	9/13	9/13	9/13
E. Empattement	1220	1252	1280	1309	1346
M. Longueur de tube supérieur	571	596	617	640	670
L. Longueur du tube de selle	380	400	420	460	500
D. Angle du tube de selle (Hi/Lo)	78.6/78.3	78.7/78.4	78.7/78.4	78.7/78.4	78.6/78.3
Standover Height (Hi/Lo)	745/740	739/735	738/733	738/733	735/730

label	name	quantity	part_number	blurb	torque
A	Head Tube Badge	1	20-27756	Clean frame surface, center on headtube
B	M5x10 BHCS	4	26-27915	Apply Loctite 242 to threads	9 Nm
C	Shuttle guard	1	30-27825	Line up with battery screws
D	Bosch DU Performance CX	1	72-25239	Bosch part number EB11.100.00E
E	M4x16 BHCS	3	26-23102	Apply grease to threads	0.65 Nm
F	DU Protector	1	30-27495
G	M6x10 BHCS	2	26-21224	Apply loctite 242 to threads	3 Nm
H	Bosch DU mount nut	2	26-27862	Bosch part number EB11.200.03C
I	M8x7 Flip Chip	1	26-27480	Apply grease to outside surface
J	36.4 Seat Collar	1	34-20201
K	M4x26 Bosch Screw	1	26-28150
L	Bosch TT System Controller	1	72-25240	Bosch part number EB13.100.000
M	Bosch TT adapter	1	26-27857	Bosch part number EB13.200.0AE

label	name	quantity	torque	part_number	blurb
A	M5x5 Set Screw	2	0.5 Nm	26-15532	Apply Loctite 242 to threads, titghten until flush
B	Water Bottle Screw	2		26-21360
C	Pivot Axle M15x91	1	20 Nm	08-22343	Apply Loctite 242 to threads only, apply grease to shaft only
D	M6 Tapered Washer	2		26-15633	Apply grease to surface
E	M6 Washer	2		26-11817
F	M6x20 SHCS	2	9 Nm	26-15947	Apply Loctite 242 to threads
G	M8x7 Flip Chip	1		26-27480	Apply grease to outside surface
H	M8x45 Lowhead SHCS	1	15.6 Nm	26-20091	Apply Loctite 242 to threads
I	Bosch charge socket holder	1		26-27867	Bosch part number EB12.120.01A
J	Bosch MCx14 Screw	2		26-27869	Bosch part number F04N.002.663
K	Bosch COB O-ring	1		26-27868	Bosch part number EB12.120.019
L	Bosch charge socket	1		72-25237	Bosch part number EB12.120.048
M	Bosch charger port cover	1		26-27866	Bosch part number EB12.120.01B
N	Bosch DU Insert Sleeve	1		26-29334	Bosch part number EB11.200.0GK
O	Bosch DU mount bolt front	1	30 Nm	26-27864	Bosch part number EB11.200.12M
P	Bosch DU mount bolt rear	1	30 Nm	26-27865	Bosch part number EB11.200.12H
Q	Pivot axle M15x80.5	1	20 Nm	08-16292	Apply Loctite 242 to threads only, apply grease to shaft only
R	M4x8 BHCS	2	0.65 Nm	26-21249	Apply grease to threads
S	Fender	1		30-27475
T	M10x10 trunnion screw	2	16 Nm	26-27481	Apply Loctite 242 to threads only, apply grease to shaft only
U	6900-2RS Bearing	2		11-12681
V	M10x3 Washer	2		26-15533	Apply grease to inner surface
W	M10x20 bolt	2	16 Nm	26-27484	Apply Loctite 242 to threads
X	6902-2RS Max Bearing	2		11-12218
Y	Washer	2		26-27483	Apply grease to inner surface
Z	M10x2.6 Flip Chip	2		26-27482	Apply grease to outside surface

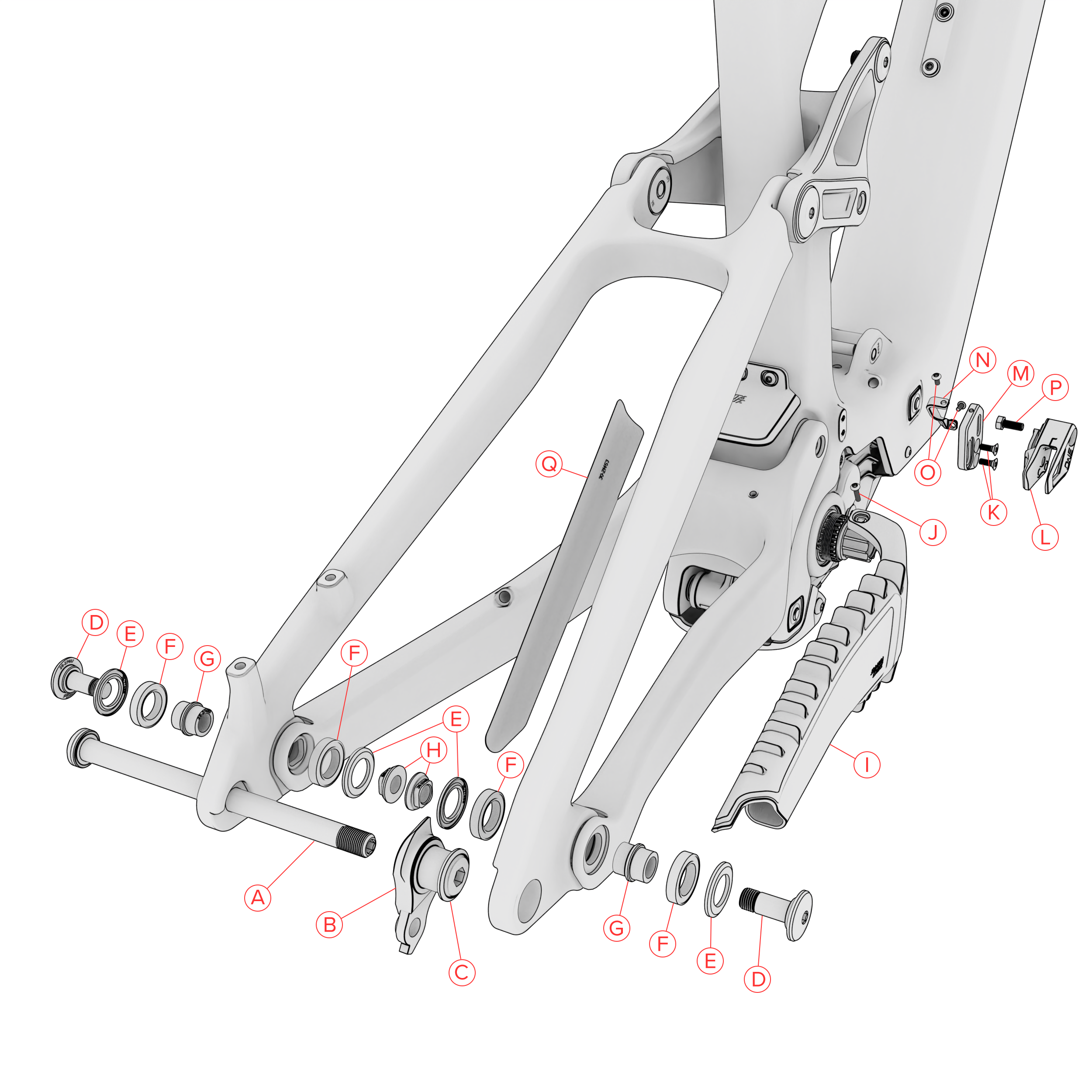

label	name	quantity	part_number	blurb	torque
A	Rear axle 12x173.7	1	08-22209	Apply grease to shaft and threads
B	SCB UDH	1	23-23491	Interchangeable with Sram UDH
C	SCB UDH screw	1	26-23492	Reverse thread	20 Nm
D	M10x26 Bolt	2	26-27487	Apply Loctite 242 to threads only, apply grease to shaft only	16 Nm
E	Dust Shield	4	26-27488	Apply grease to inner surface
F	6802-2RS Bearing	4	11-27485
G	Bearing spacer	2	26-27489	Apply grease to shaft
H	M10x6 Nut	2	26-27486	Apply grease to inner surface
I	Chanistay protector	1	30-27476
J	M3x12 BHCS	1	26-15939	Apply Loctite 242 to threads	0.1 Nm
K	M4x10 FHCS	2	26-22938	Apply Loctite 242 to threads	0.65 Nm
L	OneUp chainguide	1	19-22609
M	OneUp chainguide back plate	1	26-27839
N	Cable Loop Guide	1	30-27838
O	M3x6	2	26-22358	Apply Loctite 242 to threads	0.6 Nm
P	M5x12 HHS	1	26-22570	Apply Loctite 242 to threads	2 Nm
Q	Seatstay Protector	1	30-21453

label	name	quantity	part_number	torque	blurb
A	Battery mount rear PT600	1	26-27493
B	M4x10 SHCS	8	26-28053	1.2 Nm	Apply Loctite 242 to threads
C	Bosch H-Connector	1	26-27870
D	Bosch battery PT600	1	78-25241		Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
E	Battery mount front PT600	1	26-27494

label	name	quantity	part_number	blurb
A	Bearing Dust Shield	4	26-11612	Apply grease to inner surface
B	6902-2RS Max Bearing	4	11-12218
C	15x48 Bearing spacer	1	26-17707
D	15x40.25 Bearing Spacer	1	26-17013
E	Cable loop FT NDS	1	26-25329
F	M3x12 BHCS	1	26-15939	Apply Loctite 242 to threads

Frame Size	Flip Chip	Setup Key	Setup Cog	32T	34T	36T
S	High	A	7	116	116	118
M	High	B	7	116	118	120
L	High	A	7	118	120	120
XL	High	A	7	118	120	120
XXL	High	A	7	118	120	120
S	Low	A	7	116	118	118
M	Low	A	7	116	118	118
L	Low	A	7	118	120	120
XL	Low	A	7	118	120	120
XXL	Low	A	7	118	120	120
