Megatower
EXTREME CONDITIONS REQUIRE AN EXTREME RESPONSE
Designed for maximum speed and a margin for error when taking blind risks or tackling repeated laps, the Megatower maintains impressive pedaling ability, solidifying its reputation as the perfect choice for big gravity rides, park laps, and enduro racing.

GET UP TO GET DOWN
With a fast-rolling pair of 29-inch wheels and 170mm of VPP™ suspension paired with a 170mm-travel fork, the Megatower is perfect for riders looking to elevate their game. Capable on gnarly downhill terrain, the Mega also boasts a pedalable pedigree to get you back to the top.

BLIND CONFIDENCE FOR BLIND RACING
VPP™ suspension strikes the ideal balance between pedaling efficiency and bump-chomping prowess. The Megatower excels at absorbing the biggest hits, allowing riders to charge harder and with greater confidence on the toughest terrain. Plus, its efficiency ensures that reaching the highest, best trails is never a chore.
SO WHAT'S THE MEGATOWER ALL ABOUT?

SO WHAT'S THE MEGATOWER ALL ABOUT?
CAN'T BE BOTHERED TO READ OR STILL LOOKING FOR ANSWERS ON THE MEGATOWER? WATCH AND LEARN

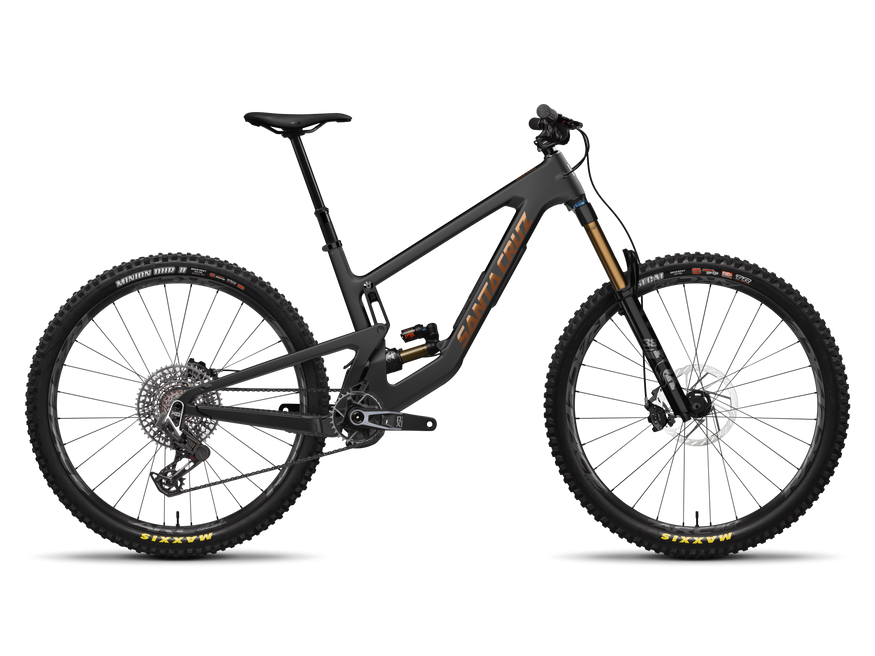

Megatower X0 AXS RSV
CC Carbon-Rahmen, elektronischer SRAM X0 Transmission-Antrieb, Highend Fahrwerk, starke SRAM Maven Silver Stealth Bremsen. Und die legendären RESERVE Carbon-Laufräder mit Industry Nine Naben.
Megatower X0 AXS
CC Carbon-Rahmen, elektronischer SRAM X0 Transmission-Antrieb, Highend Fahrwerk, Industry Nine Naben und starke SRAM Maven Silver Stealth Bremsen
Megatower GX AXS
Elektronische SRAM GX Transmission, super starke SRAM Maven Bremsen.
Megatower 90
Ein solides Upgrade ... Hochwertigere Naben, Steuersatz und Sattelstütze. FOX FLOAT X Dämpfer, mechanischer SRAM 90 TRANSMISSION Antrieb, SRAM MAVEN Bremsen und RESERVE AL Felgen.
Megatower 70
Basismodell mit denselben Reifen und großen Bremsscheiben wie alle MEGATOWER-Modelle. Mechanische SRAM 70 TRANSMISSION Schaltung, FOX FLOAT X Dämpfer und RESERVE AL Felgen.

Deals On Megatowers
Current OffersDesign Details
Megatower
Größe & Geometrie
Wenn Du zwischen zwei Rahmengrößen liegst, empfehlen wir, dass Du beide Optionen testest. Als Anhaltspunkt kannst Du die Reach- und Stack-Werte mit Deinem aktuellen Bike oder anderen bekannten Bikes vergleichen, auf denen Du Dich wohl fühlst. Wenn keine Testfahrt möglich ist, kannst Du Dich auch an den folgenden Tipps orientieren:
s | m | l | xl | xxl | |
---|---|---|---|---|---|
Reach (Hi/Lo) | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
Stack (Hi/Lo) | 616/618 | 625/627 | 638/640 | 656/658 | 670/672 |
C. Lenkwinkel (Hi/Lo) | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° | 63.8°/63.5° |
L. Sitzrohrlänge (Hi/Lo) | 380 | 405 | 430 | 460 | 500 |
Front Center (Hi/Lo) | 770 | 799 | 826 | 855 | 886 |
H. Tretlagerhöhe (Hi/Lo) | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 |
I. Tretlagerabsenkung (Hi/Lo) | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 |
E. Radstand (Hi/Lo) | 1206 | 1236/1237 | 1266 | 1298 | 1333/1334 |
G. Hinterbaulänge (Hi/Lo) | 436/437 | 437/438 | 440/441 | 443/444 | 447/448 |
K. Steuerrohrlänge (Hi/Lo) | 90 | 100 | 115 | 135 | 150 |
M. Oberrohrlänge (Hi/Lo) | 570 | 594/595 | 613 | 637/638 | 666/667 |
D. Sitzwinkel (Hi/Lo) | 77.24°/77.0° | 77.42°/77.2° | 77.8°/77.5° | 77.8°/77.5° | 77.8°/77.5° |
J. Überstandshöhe (Hi/Lo) | 709/705 | 716/712 | 723/718 | 722/717 | 724/720 |
Megatower
Setup & Support
Egal, ob Du stolzer Besitzer eines Megatower bist oder Dich einfach nur für alle Details interessierst - hier wirst Du fündig.

label | part_number | quantity | name | blurb | torque |
---|---|---|---|---|---|

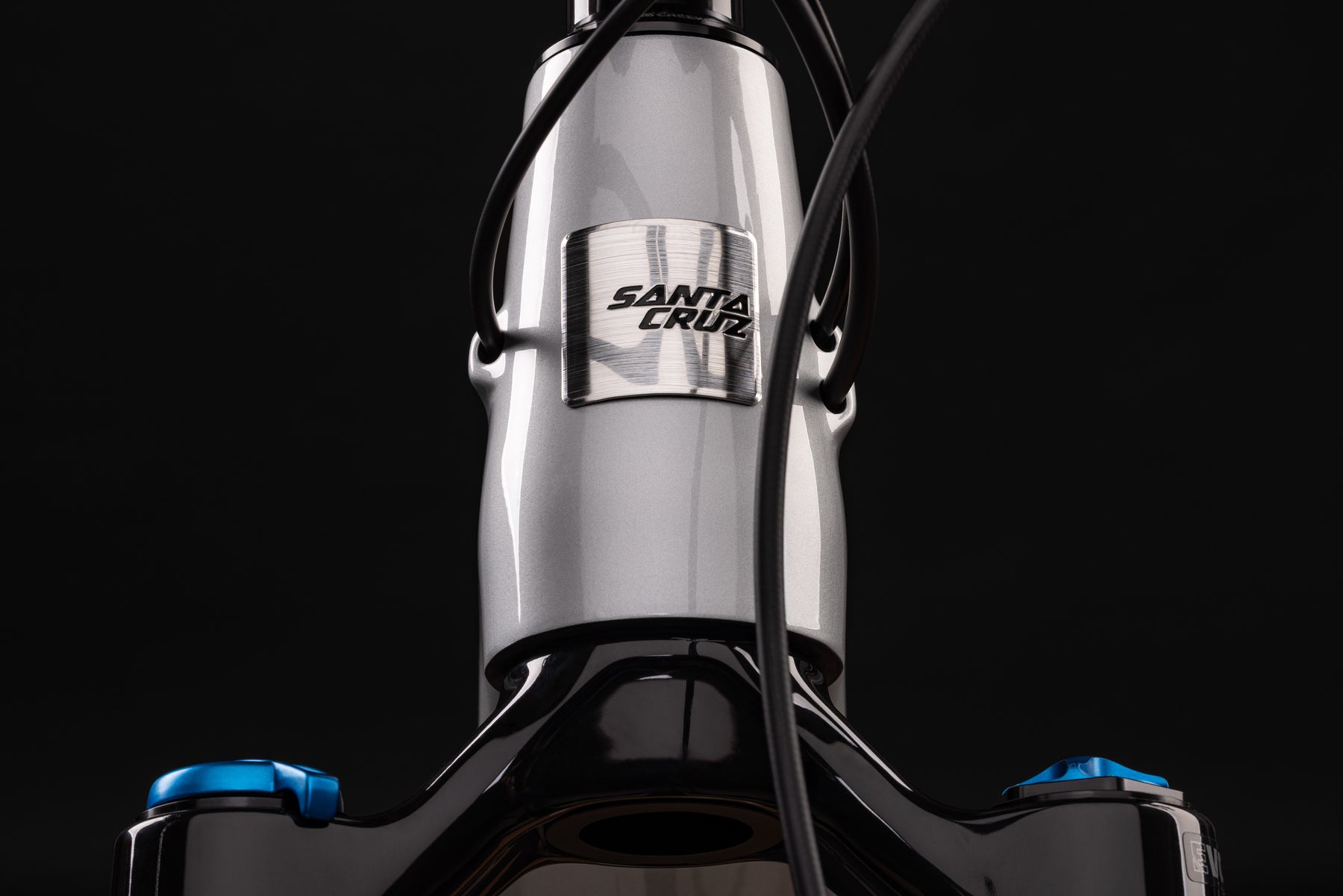

A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube | |
B | 30-22560 | 1 | Shuttle Guard | ||
C | 30-23750 | 1 | Shuttle Guard Mount | ||
D | 26-21249 | 2 | M4x8 BHCS | Apply grease to threads | 0.65 Nm |
E | 30-23718 | 1 | Downtube Protector | ||
F | 26-18382 | 2 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
G | 30-23225 | 2 | Glovebox nut | ||
H | 26-25333 | 1 | Glovebox bezel | ||
I | 26-23284 | 4 | M3x8 BHCS | Apply Loctite 242 to threads | 0.5 Nm |
J | 26-22843 | 1 | Glovebox lid | ||
K | 26-22358 | 1 | M3x6 | Apply Loctite 242 to threads | 0.6 Nm |

label | part_number | quantity | torque | name | blurb |
---|---|---|---|---|---|
A | 26-20122 | 2 | 16 Nm | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only |
B | 26-22461 | 2 | 20 Nm | M8x45 Shock Bolt | Apply Loctite 242 to threads |
C | 08-22343 | 1 | 20 Nm | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only |
D | 08-16291 | 1 | 20 Nm | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
E | 08-16292 | 1 | 20 Nm | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only |
F | 26-15633 | 3 | M6 Tapered Washer | Apply grease to surface | |
G | 26-11817 | 3 | M6 Washer | ||
H | 26-15947 | 3 | 9 Nm | M6x20 SHCS | Apply Loctite 242 to threads |
I | 26-21452 | 1 | M8x2 Flip Chip NDS | Apply grease to surface | |
J | 26-21451 | 1 | M8x2 Flip Chip DS | Apply grease to surface |

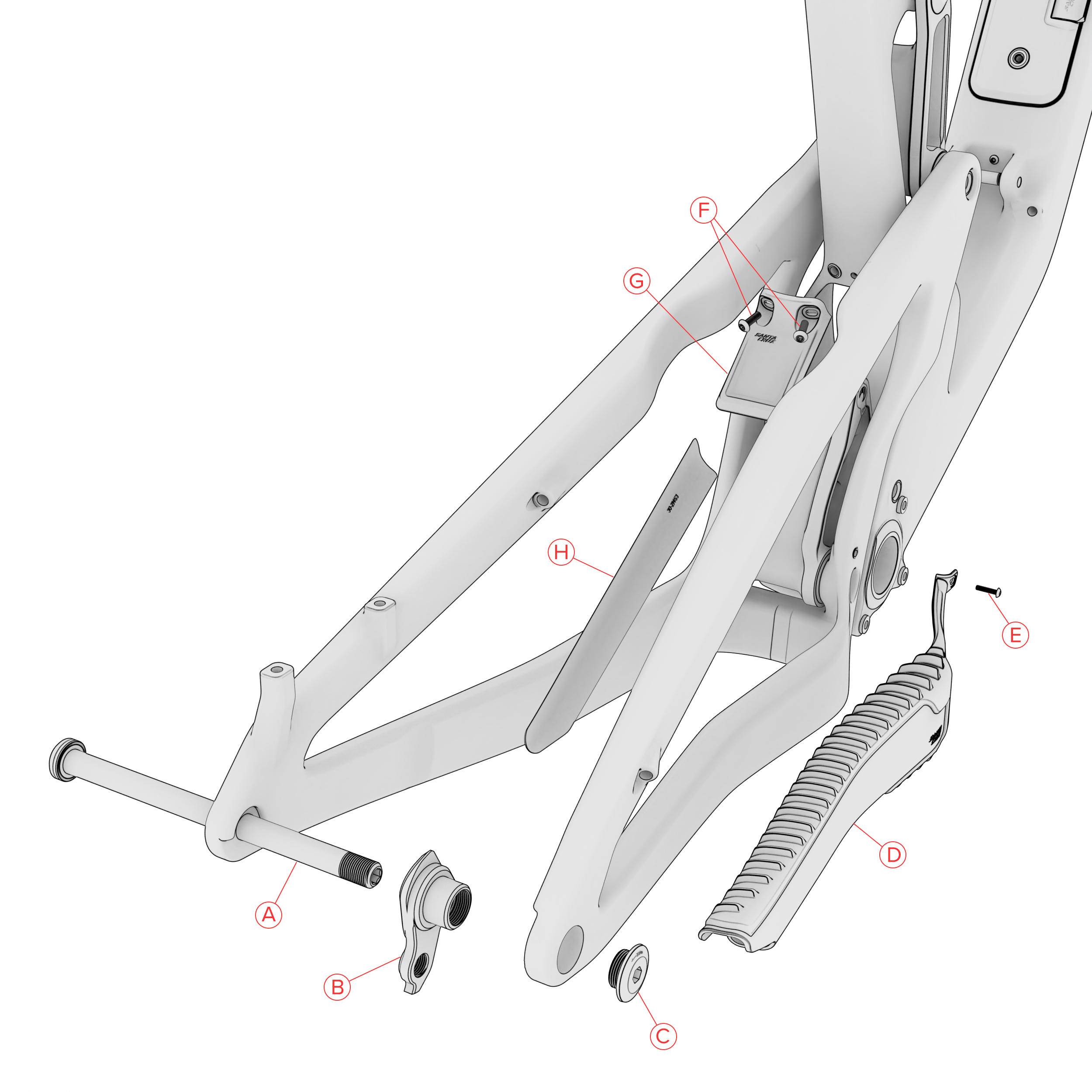

label | part_number | quantity | name | blurb | torque |
---|---|---|---|---|---|
A | 08-22209 | 1 | Rear axle 12x173.7 | Apply grease to shaft and threads | |
B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
D | 30-20361 | 1 | Chainstay Protector | ||
E | 26-15939 | 1 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
F | 26-18382 | 2 | M4x12 BHC | Apply grease to treads | 0.65 Nm |
G | 49-21567 | 1 | Lower Link Fender | ||
H | 30-21453 | 1 | Seatstay Protector |

label | part_number | quantity | name | blurb |
---|---|---|---|---|
A | 29-23753 | 1 | Upper Link | |
B | 11-12681 | 2 | 6900-2RS Bearing | |
C | 26-15533 | 2 | M10x3 Washer | Apply grease to inner surface |
D | 11-12218 | 2 | 6902-2RS Max Bearing | |
E | 26-11612 | 2 | Bearing Dust Shield | Apply grease to inner surface |
F | 26-17013 | 1 | 15x40.25 Bearing Spacer |

label | part_number | quantity | name | blurb | torque |
---|---|---|---|---|---|
A | 29-23752 | 1 | Lower Link | ||
B | 11-17708 | 4 | 6902-1ZR Bearing | ||
C | 26-11612 | 4 | Bearing Dust Shield | Apply grease to inner surface | |
D | 26-19126 | 1 | 15x28 Bearing spacer | ||
E | 26-17013 | 1 | 15x40.25 Bearing Spacer | ||
F | 26-15532 | 1 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
G | 26-12678 | 1 | M6 Grease Fitting | 9 Nm |

Frame Size | Flip Chip | Setup Key | Setup Cog | 30T | 32T | 34T | 36T |
---|---|---|---|---|---|---|---|
Small | High | B | 7 | 116 | 116 | 118 | 118 |
Medium | High | B | 7 | 116 | 116 | 118 | 118 |
Large | High | B | 7 | 116 | 116 | 118 | 118 |
XLarge | High | B | 7 | 116 | 118 | 118 | 120 |
XXLarge | High | B | 7 | 118 | 118 | 120 | 120 |
Small | Low | B | 7 | 116 | 116 | 118 | 118 |
Medium | Low | B | 7 | 116 | 116 | 118 | 118 |
Large | Low | B | 7 | 116 | 118 | 118 | 120 |
XLarge | Low | B | 7 | 116 | 118 | 118 | 120 |
XXLarge | Low | B | 7 | 118 | 118 | 120 | 120 |
Alle Details
Sizing and support for the Megatower

Geometrie& Größe

Setup& Support
“When gravity takes over, the Megatower puts you at ease, implementing steering input precisely and predictable with its intuitive handling.”
“The geometry makes it better and ensures riding fun in any terrain. This makes the Santa not only fast, but also playful. Clever: the storage compartment in the down tube.”
“Descending on the Megatower is piles of fun...It leaves me feeling like certain sections of trail can be ridden, rather than survived. ”
